Frameset
Frame 671205 6061 Aluminum Tubing, 68mm Euro Bottom Bracket
Fork 28951 1-1/8" High Tensile Steel, Straight Legs
Drivetrain
Crankset 211394 3-Piece Chromoly, 175mm
Chainring 211395 Alloy, 33T x 1/2" x 1/8"
Bottom Bracket 213396 Sealed Cartridge, 8T Splined, w/Quad Bearings
Freewheel Freewheel 15T x 1/2" x 1/8"
Chain 16248 K.M.C. S1, 1/2" x 1/8"
Pedals 410203 Alloy W/Chromoly Spindle, 9/16"
Brakes
Rear Brake 120722 Alloy, Tektro Linear Pull
Brake Lever 120721 Alloy, Tektro Linear Pull
Components

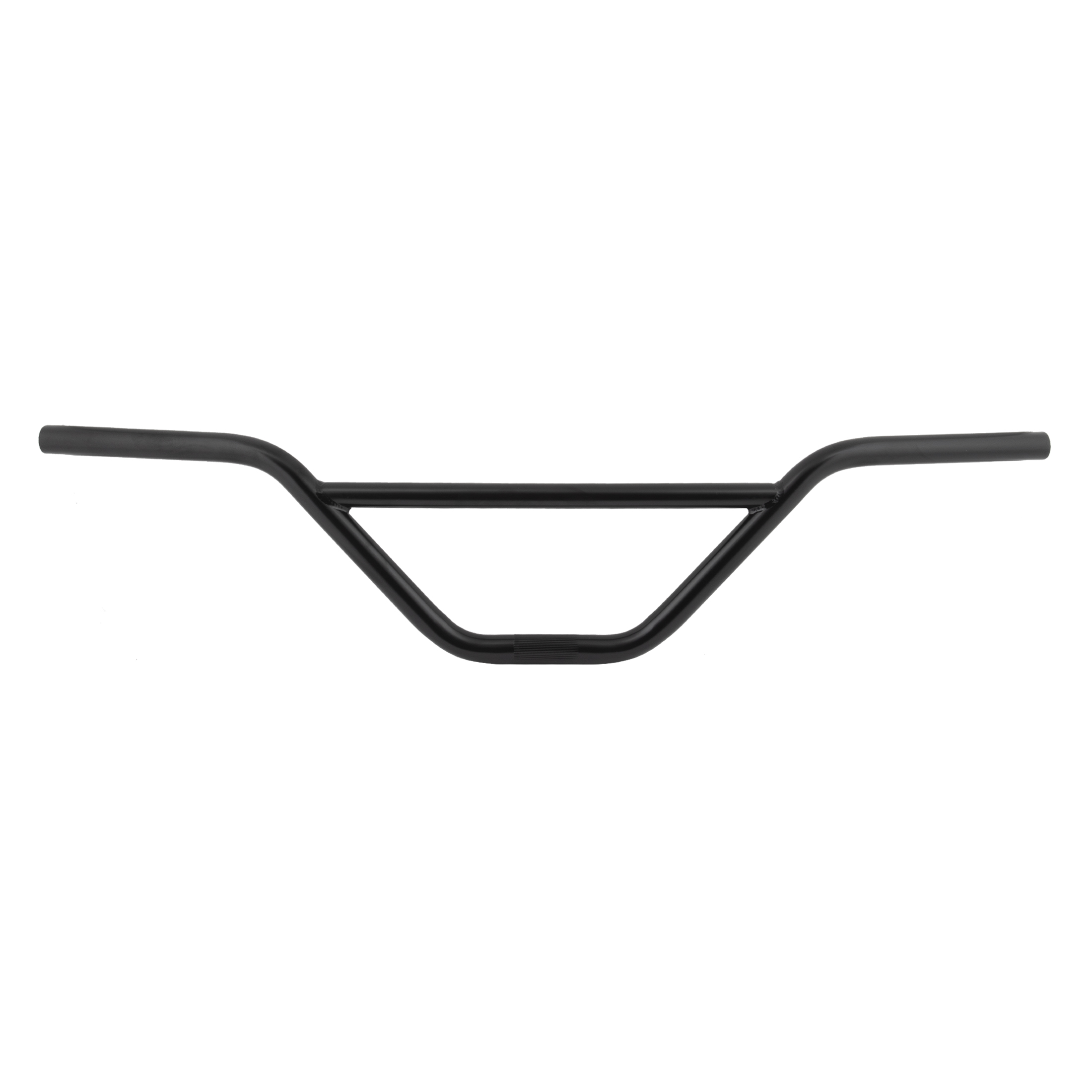

Handlebar 34820 Steel, BMX, 30" Wide x 6" Rise x 22.2 Clamp
Stem 570078 Alloy, BMX, Threadless, 28.6 x 50mm x 22.2 Clamp W/4-Bolt Face Plate
Headset 35891 Steel, Caged Bearings, Sealed, 25.4 x 34 x 30mm
Grips 310025 Kraton Rubber, 130mm
Saddle 50629 Black-Ops Custom BMX, Steel Rails w/Grip Top
Seat Post 52586 Alloy W/Integrated Clamp, 27.2 x 350mm
Seat Clamp Seat Clamp Alloy, 31.8mm I.D., With Bolt
Wheels
Front Wheel 640651 29", Double-Wall Alloy, 36H, Bolt-On
Rear Wheel 640652 29", Double-Wall Alloy, 36H, Bolt-On (Flip-Flop)
Front Hub Front Hub Alloy, 36H, 100mm Spacing, Sealed Cartridge Bearings, 3/8" Bolt-On Axle
Rear Hub Rear Hub Alloy, 36H, 110mm Spacing, Sealed Cartridge Bearings, 14mm Bolt-On Axle
Spokes Spokes 14G Stainless Steel ED Blk with brass nipples (F-291 / R-290 / N-12mm)
Rims 470697 29", Double-Wall Alloy, 30 x 24mm, 36H x 14G
Tires 592084 29 x 2.35", Black Wall

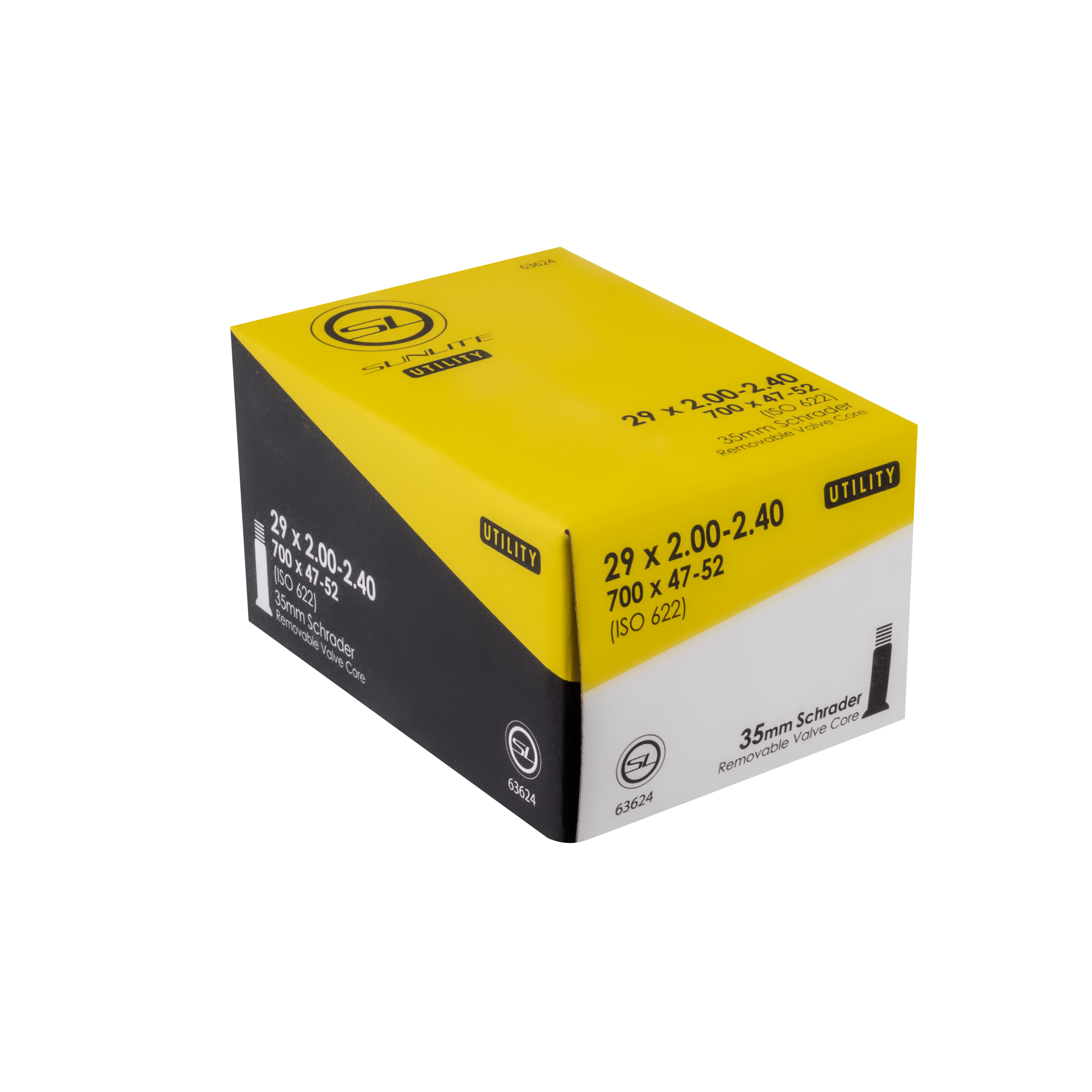

Tubes 63624 29" x 2.35", Schrader Valve
Included Extras
Accessory 914844 3-Piece Pad Set, SpecOp Camo
Replacement Parts
Chain Guard 290375 Plastic, Removable, Smoked Clear
Hub Rear Part 372149 Hub Rear Part Replacement Rear Axle, 14 x 1 x 180mm
Weight
Bike Weight Bike Weight 30.5 Lbs.
Rider Weight Limit Rider Weight Limit 250 Lbs.
Notes
Pricing & Specifications Pricing & Specifications We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes.
