| Frameset |
| Frame |
|
 |
High Tensile Steel, TIG-Welded |
| Fork |
28051 |
 |
1-1/8" High Tensile Steel, Curved Legs, Double Eyelets |
| Drivetrain |
| Rear Shifter |
530074 |
 |
Shimano 7-Speed Revo Twist Shifter |
| Rear Derailleur |
250034 |
 |
Shimano RD-TX35 Tourney |
| Freewheel |
180026 |
 |
Shimano TZ-21 (7-Speed) 14-28T |
| Captain Crank Left |
22197 |
 |
3-Piece Alloy, 170mm x 42T x 1/2" x 1/8", Black (For Diamond Square Cranks) |
| Captain Crank Right |
22198 |
 |
3-Piece Alloy, 170mm, Black (For Diamond Square Cranks) |
| Stoker Crank Left |
22197 |
|
3-Piece Alloy, 170mm x 42T x 1/2" x 1/8", Black (For Diamond Square Cranks) |
| Stoker Crank Right |
22196 |
 |
3-Piece Alloy, 170mm x 42T x 1/2" x 3/32", Black (For Diamond Square Cranks) |
| Bottom Bracket |
2221 |
 |
BC1.37'' x 24TPI, Steel, Caged Bearings |
| Bottom Bracket Spindle |
22488 |
 |
Bolt Type, 119mm |
| Pulley Adjuster |
20693 |
 |
Eccentric BB Insert |
| Chain |
16064 |
 |
K.M.C. 1/2" x 3/32", Black (130 Links) |
| Tandem Drive Chain |
|
|
K.M.C. 1/2" x 1/8", Black (152 Links) |
| Pedals |
41737 |
 |
Slip Resistant Top, 9/16", Black |
| Brakes |
| Brake Lever |
|
|
Alloy (Linear Pull) Black / Silver |
| Front Brake |
120224 |
 |
Alloy (Linear Pull) Black |
| Rear Brake |
120224 |
|
Alloy (Linear Pull) Black |
| Components |
| Headset |
35042 |
 |
Steel, 25.4 x 34 x 30mm, Black |
| Handlebar |
33948 |
 |
Steel, 28.4" Wide x 7.3" Rise x 25.4 Clamp, Black |
| Stoker Handlebar |
33949 |
 |
Steel, 27" Wide x 10.8" Rise x 25.4mm Clamp, Black |
| Stem |
58290 |
 |
Alloy, 25.4 x 180mm Quill x 80mm Ext. x 25.4 Clamp, Black |
| Stoker Stem |
58292 |
 |
Alloy, Adjustable Reach (4-Bolt Face) Black |
| Grips |
31301 |
 |
Foam, Black |
| Seat Clamp / Binder Bolt |
52093 |
 |
Alloy, 28.6mm I.D., with Double Bolt, Black |
| Seat Post |
52084 |
 |
Alloy w/o Clamp, 25.6 x 350mm, Black |
| Saddle |
49753 |
 |
Comfort Cruiser, Elastomer Suspension, Black |
| Wheels |
| Front Hub |
38489 |
 |
Alloy, 36H x 14G x 3/8" Bolt-On Axle, Black |
| Rear Hub |
38497 |
 |
Alloy, 36H x 14G with 3/8" Bolt-On Axle, Black (For Freewheel) |
| Rims |
48541 |
 |
26" x 36H x 14G, Red |
| Front Wheel |
888 |
|
26" x 1.75 x 36H x 14G Alloy-Cruiser, Bolt-On |
| Rear Wheel |
888 |
|
26" x 1.75 x 36H x 14G Alloy-Cruiser, (FOR FREEWHEEL) |
| Spokes |
|
|
14G Stainless Steel with Brass Nipples |
| Tires |
59326 |
 |

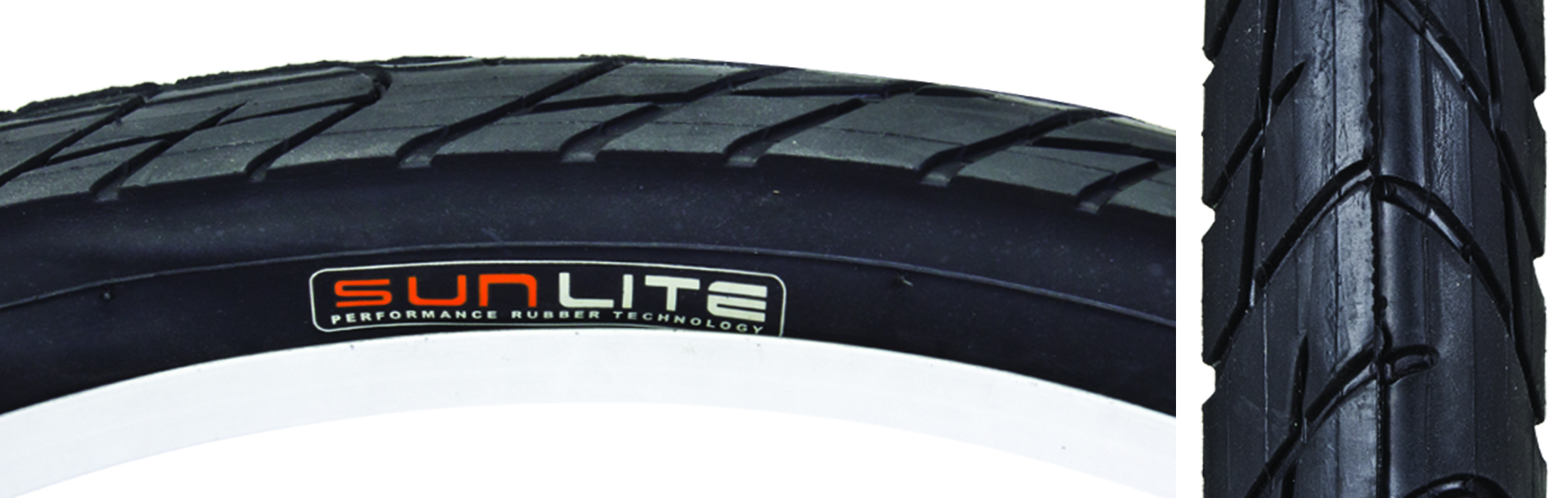

Beach Bum 26 x 2.125", Black Wall |
| Tubes |
63320 |
 |
26" x 1.90-2.35'', Schrader Valve |
| Included Extras |
| Kickstand |
98052 |
 |
Alloy, Center Mount, Black |
| Front Fender |
29741 |
 |
Steel, W/Single Strut, Painted |
| Rear Fender |
29742 |
 |
Steel, W/Single Strut, Painted |
| Replacement Parts |
| Stoker Stem Shim |
58379 |
 |
Stoker Stem Shim, 28.6 / 25.6 |
| Stoker Seat Clamp |
52093 |
|
Alloy, 28.6mm I.D., Black |
| Stoker Chain Guard |
29737 |
 |
Steel, Painted |
| Captain Chain Guard |
29787 |
 |
Plastic Chain Ring Guard, Silver |
| Weight |
| Weight |
|
|
60 Lbs. |
| Notes |
| Pricing & Specifications |
|
|
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
