| Frameset |
| Frame |
|
 |
6061 Series Aluminum, TIG-Welded |
| Fork |
28052 |
 |
1-1/8'' High Tensile Steel, Curved Legs, Double Eyelets |
| Drivetrain |
| Rear Shifter |
530074 |
 |
Shimano Tourney 7-Speed Twist Shifter |
| Rear Derailleur |
250034 |
 |
Shimano RD-TX35 Tourney |
| Freewheel |
180026 |
 |
Shimano TZ-21 (7-Speed) 14-28T |
| Captain Crank Left |
22201 |
 |
3-Piece Alloy, 170mm x 42T x 1/2" x 1/8", Black (For Diamond Square Cranks) |
| Captain Crank Right |
22202 |
 |
3-Piece Alloy, 170mm, Black (For Diamond Square Cranks) |
| Stoker Crank Left |
22201 |
|
3-Piece Alloy, 170mm x 42T x 1/2" x 1/8", Black (For Diamond Square Cranks) |
| Stoker Crank Right |
22199 |
 |
3-Piece Alloy, 170mm x 42T x 1/2" x 3/32", Black (For Diamond Square Cranks) |
| Bottom Bracket |
2221 |
 |
BC1.37'' x 24TPI, Steel, Caged Bearings |
| Bottom Bracket Spindle |
22700 |
 |
Square Taper (JIS), Bolt Type, 68 x 110mm |
| Pulley Adjuster |
20693 |
 |
Eccentric BB Insert |

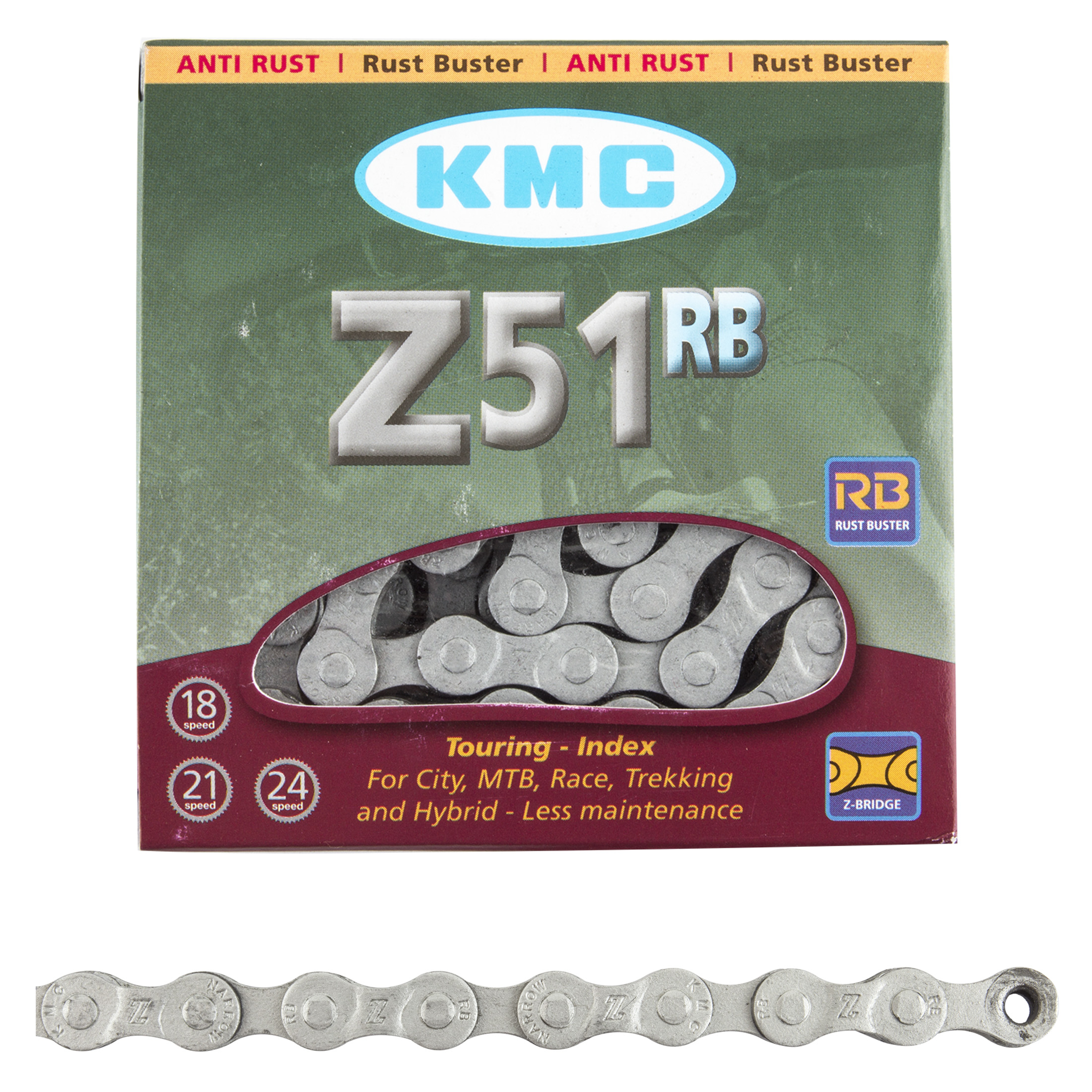

| Chain |
16190 |
 |
K.M.C. 1/2" x 3/32", Silver (130 Links) |
| Tandem Drive Chain |
|
|
K.M.C. 1/2" x 1/8", Silver (152 Links) |
| Pedals |
41737 |
 |
Slip Resistant Top, 9/16", Black |
| Brakes |
| Brake Lever |
|
|
Alloy (Linear Pull) Black / Silver |
| Front Brake |
120224 |
 |
Alloy (Linear Pull) Black |
| Rear Brake |
120224 |
|
Alloy (Linear Pull) Black |
| Components |
| Headset |
35669 |
 |
Semi Integrated, Steel, 25.4 x 44 x 30mm, Black |
| Handlebar |
33948 |
 |
Steel, 28.4" Wide x 7.3" Rise x 25.4 Clamp, Black |
| Stoker Handlebar |
33949 |
 |
Steel, 27" Wide x 10.8" Rise x 25.4mm Clamp, Black |
| Stem |
58291 |
 |
Alloy W/Micro Adj. Angle, 25.4 x 180mm Quill x 90mm Ext., Black |
| Stoker Stem |
58292 |
 |
Alloy, Adjustable Reach (4-Bolt Face) Black |
| Grips |
51938 |
|
Kraton Rubber-Gel, 130mm, 2-Tone Black & Grey |
| Seat Clamp / Binder Bolt |
52081 |
 |
Alloy, 34.9mm I.D., with Double Bolt, Black |
| Seat Post |
51753 |
 |
Alloy W/Integrated Clamp, 28.6 x 350mm, Black |
| Saddle |
49753 |
 |
Comfort Cruiser, Elastomer Suspension, Black |
| Wheels |
| Front Hub |
37205 |
 |
Alloy, 36H x 12G x 3/8" Bolt-On Axle, Black |
| Rear Hub |
37206 |
 |
Alloy, 36H x 12G x 3/8" Bolt-On Axle, Black |
| Rims |
48351 |
 |
26" x 36H x 12G, Alloy, Black |
| Front Wheel |
888 |
|
26" x 1.75 x 36H x 12G Alloy-Cruiser, Bolt-On |
| Rear Wheel |
888 |
|
26" x 1.75 x 36H x 12G Alloy-Cruiser (For Freewheel) |
| Spokes |
|
|
12G Stainless Steel with Brass Nipples (F-265 / D-261 - ND-263 / N- ) |
| Tires |
59907 |
 |
Kenda Komfort 26 x 1.95", Black Wall |
| Tubes |
63320 |
 |
26" x 1.90-2.35'', Schrader Valve |
| Included Extras |
| Kickstand |
98052 |
 |
Alloy, Center Mount, Black |
| Front Fender |
29743 |
 |
Plastic W/Rubber Bump Guards, Silver |
| Rear Fender |
29744 |
 |
Plastic W/Rubber Bump Guards, Silver |
| Replacement Parts |
| Stoker Seat Clamp |
51929 |
 |
Alloy, 34.9mm I.D., Black |
| Stoker Chain Guard |
29738 |
 |
Steel, Painted |
| Captain Chain Guard |
29788 |
 |
Plastic Chain Ring Guard, Black |
| Weight |
| Weight |
|
|
58 Lbs. |
| Notes |
| Pricing & Specifications |
|
|
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
