| Frameset |
| Frame |
68648 |
 |
Chromoly, TIG-Welded |
| Fork |
27939 |
|
1-1/8" Chromoly, Tapered Legs |
| Drivetrain |
| Front Shifter |
53939 |
 |
SRAM 3.0 3-Speed Grip Shift |
| Rear Shifter |
53941 |
 |
SRAM 3.0 8-Speed Grip Shift |
| Front Derailleur |
26234 |
|
Microshift, DP, 31.8 |
| Rear Derailleur |
26270 |
 |
SRAM X4 |
| Freewheel |
18642 |
 |
SRAM 8-Speed Cassette, 11-32T |
| Crank Set |
21323 |
 |
Alloy, 3-Piece, 170x52/42/32T |
| Bottom Bracket |
17125 |
 |
Sealed Cartridge, 68 x 116mm |
| Chain |
16078 |
 |
1/2" x 3/32" Sil/Gry (228 Links Total) |
| Chain Guide |
16233 |
 |
Single Guide Wheel |
| Chain Guide Hardware |
16234 |
 |
Single Guide Wheel Hardware |
| Pedals |
41517 |
 |
Resin Body w/Alloy Cage, 9/16" |
| Brakes |
| Rear Brake Lever |
13749 |
 |
Alloy, Linear Pull, Black/Silver |
| Front Brake |
12119 |
 |
Alloy, Linear Pull, Black |
| Rear Brake |
12120 |
 |
Alloy, Linear Pull, Black |
| Components |
| Headset |
35501 |
 |
Alloy, 28.6 x 34 x 30mm, Black |
| Handlebar |
67349 |
 |
Alloy, Recumbent w/Dual Bottle Mounts, Black |
| Stem |
67736 |
 |
Alloy, Threadless 28.6 x 60mm x 10deg x 25.4mm Clamp, Black |
| Stem Quill Adapter |
67737 |
|
Alloy 28.6x25.4x240mm Black |
| Grips |
|
|
Kraton Rubber, 65mm, 2-Tone Black/Grey |
| Front Brake Lever |
13749 |
|
Alloy, Linear Pull, Black/Silver |
| Rear Brake Lever |
13749 |
|
Alloy, Linear Pull, Black/Silver |
| Saddle |
49638 |
 |
Recumbent, w/Tri-Stitch Cover |
| Wheels |
| Front Hub |
36043 |
 |
Alloy, 36H x 14G with Q/R Axle, Black |
| Rear Hub |
36045 |
 |
Alloy, 36H x 14G with Q/R Axle, Black (For Cassette) |
| Front Rim |
47793 |
 |
20'' x 36H x 14G, Alloy, Silver |
| Rear Rim |
47531 |
 |
26'' x 36H x 14G, Alloy, Silver |
| Spokes |
|
|
14G Stainless Steel ED Blk with brass nipples (F-189 / D-260 - ND-262 / N-12mm) |
| Front Tire |
59828 |
 |

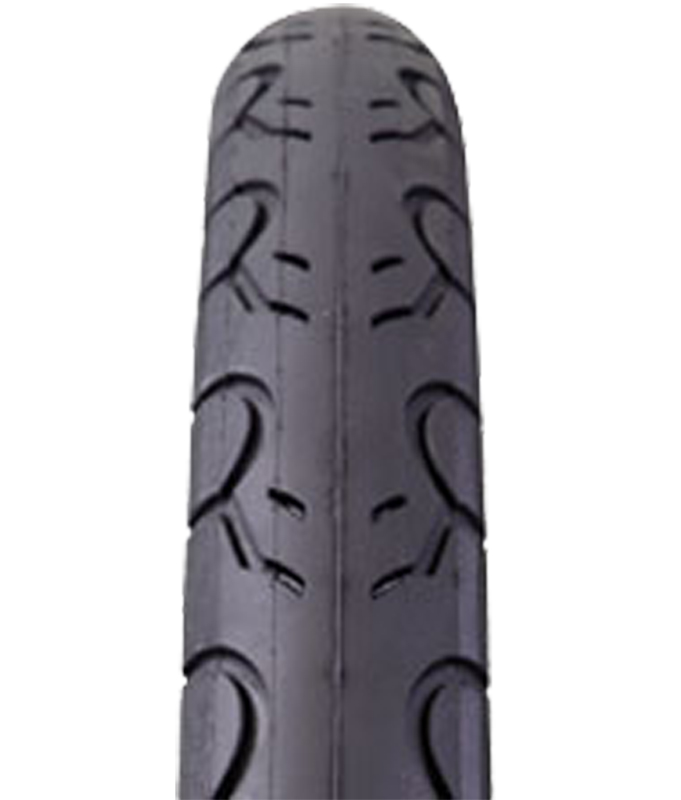

20" x 1.50" BW Kenda Kwest 100psi |
| Rear Tire |
59833 |
 |

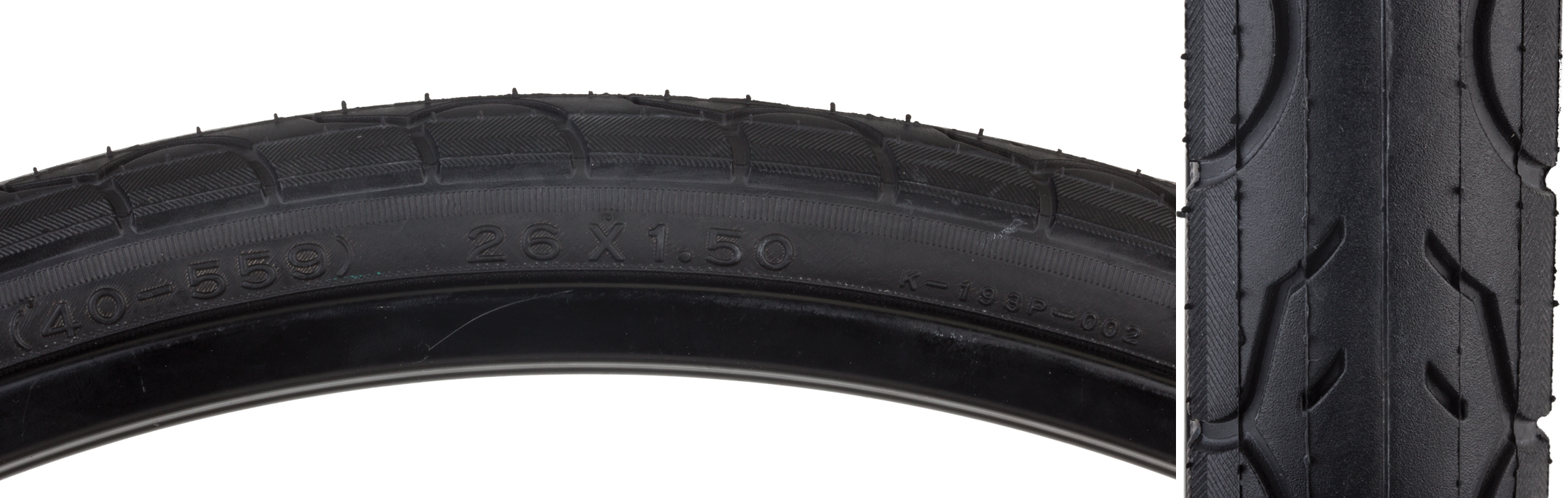

26" x 1.50" BW Kenda Kwest 100psi |
| Replacement Parts |
| Head/Derailleur Tube Cap |
35511 |
 |
Head/Derailleur Tube Cap |
| Seat Mesh |
67218 |
 |
Cool Back Seat Mesh |
| Seat Back |
49658 |
 |
Cool Back Alloy w/Dual Bottle Mounts |
| Seat Cover |
49639 |
 |
Tri-Stitch Cover |
| Seat Mount |
67947 |
 |
Alloy 1-1/4 Black |
| Seat Mount Binder |
50038 |
 |
QR M6x60mm Alloy, XL Lever |
| Seat Back Pivot Bolt |
67232 |
 |
10mm, Chrome |
| Upper Strut |
67893 |
 |
Alloy 150mm, Black |
| Upper Strut Bolt |
49672 |
 |
M5x35mm |
| Upper Strut Washer |
49671 |
 |
Curved Nylon Washer |
| Lower Strut |
50043 |
 |
Alloy, Clamp Type, Universal BLK |
| Lower Strut Slide Bolt |
67238 |
|
Lower Strut Bolt and Nut |
| Strut Peg QR |
67237 |
 |
Steel Pin, QR |
| Weight |
| Weight |
|
|
40 Lbs. |
| Weight Limit |
|
|
300 Lbs. |
| Notes |
| Pricing & Specifications |
|
|
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
