| Frameset |
| Frame |
69062 |
 |
High Tensile Steel, TIG-Welded |
| Rear Frame |
69064 |
 |
Rear Frame Unit 15mm Axle Non-Cambered |
| Fork |
28150 |
 |
1" High Tensile Steel, Tapered Legs |
| Drivetrain |
| Front Shifter |
53939 |
 |
SRAM 3.0 3-Speed Grip Shift |
| Rear Shifter |
53940 |
 |
SRAM 3.0 7-Speed Grip Shift |
| Front Derailleur |
26233 |
 |
Microshift, DP, 31.8 |
| Rear Derailleur |
26305 |
 |
SRAM X3 |
| Sprocket |
67444 |
 |
Fixed Sprocket 15mm x 20T |
| Freewheel |
18804 |
 |
Sunrace (7-Speed) 14-28T |
| Crank Set |
21837 |
 |
3-Piece Steel, 170x48/38/28T |
| Bottom Bracket |
2221 |
 |
Steel, Caged Bearings, 68 x 119mm |
| Chain |
16078 |
 |
K.M.C. 1/2 x 3/32'' (286 Links) |

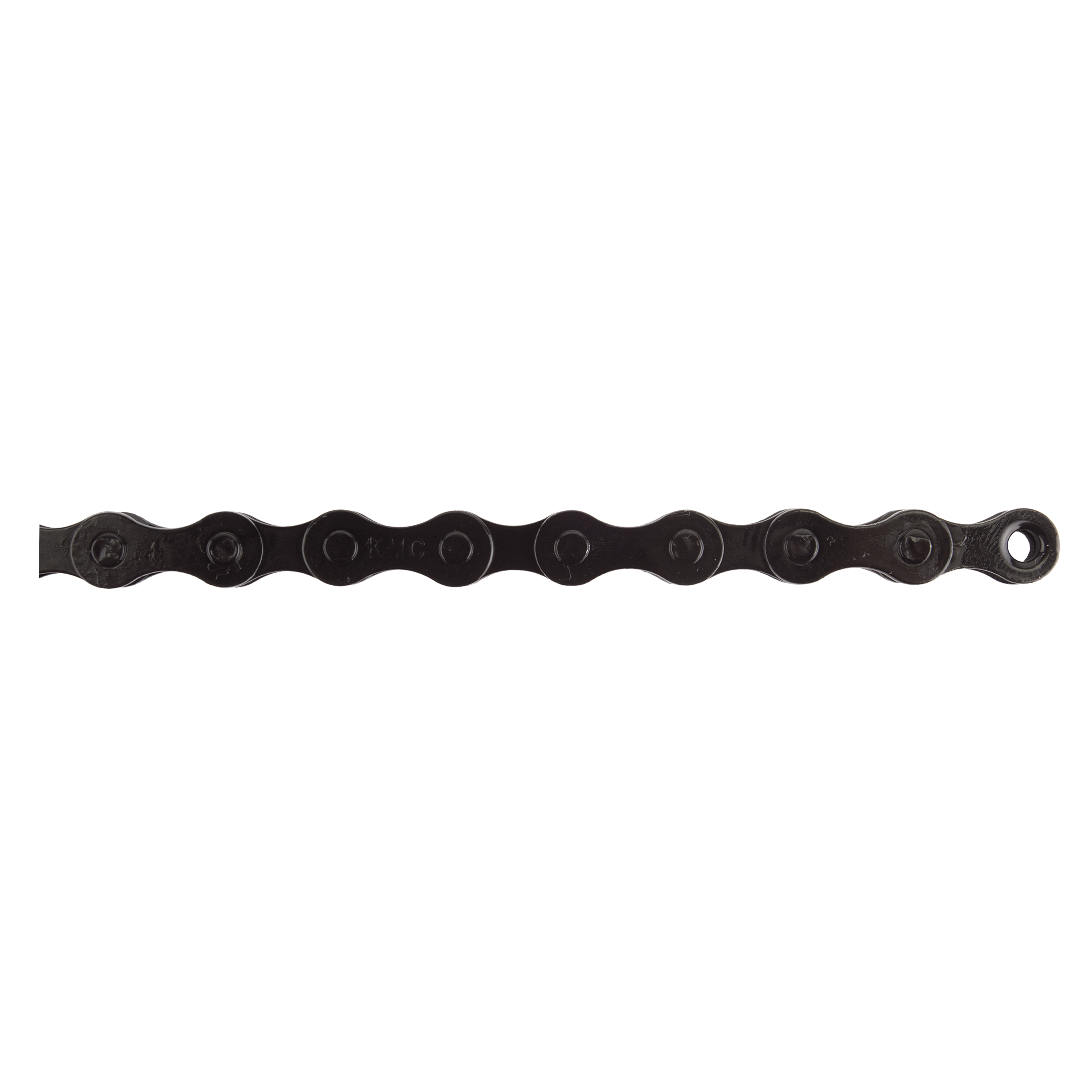

| Rear Chain |
16365 |
 |
1/2 x 1/8" |
| Chain Guide |
16233 |
 |
Single 38x56x15Wx10D |
| Chain Guide Hardware |
16451 |
 |
Guide Wheel Hardware Single 10x47mm |
| Pedals |
67229 |
|
Resin Body, 9/16", Black |
| Mid Drive Hub |
67439 |
 |
135mm Mid-Hub, F/W, 20T Welded Cog, 6B Disc |
| Brakes |
| Rear Brake Lever |
12415 |
 |
Linear Pull, Black/Silver |
| Front Brake |
12119 |
 |
Alloy, Linear Pull, Black |
| Rear Brake |
120145 |
|
Promax DSK-400 Disc w/160mm Rotor |
| Components |
| Headset |
35500 |
 |
Steel, Caged Bearings, 22.2 x 30 x 27mm, Black |
| Handlebar |
33454 |
 |
Steel, Recumbent w/Dual Bottle Mounts |
| Stem |
58169 |
 |
Recumbent Alloy, 22.2 x 240mm Quill x 40mm Ext., Black |
| Grips |
|
|
Kraton Rubber-Gel, 90mm, Black |
| Front Brake Lever |
12414 |
 |
Linear Pull w/Lock, Black/Silver |
| Rear Brake Lever |
12415 |
|
Linear Pull, Black/Silver |
| Saddle |
49638 |
 |
Recumbent, w/Tri-Stitch Cover |
| Wheels |
| Front Hub |
370129 |
 |
Steel, 28H x 14G with 3/8" Bolt-On Axle, CP |
| Rear Hub |
37601 |
 |
Steel, 36H, Pinned for Trike, Black |
| Front Rim |
640748 |
 |
16 x 1.5-1.75" Alloy SL 28H |
| Rear Rim |
47793 |
 |
20 x 1.5-1.75" Alloy SL 36H |
| Spokes |
|
|
14G Stainless Steel ED Blk with brass nipples (F-136 / R181 / N-12mm) |
| Front Tire |
60209 |
 |
Kenda Kwest K193 16 x 1.5" 60psi |
| Rear Tire |
60210 |
 |
Kenda Kwest K193 20 x 1.5" 60psi |
| Replacement Parts |
| Rear Unit Hardware |
68691 |
 |
Rear Unit Hardware Kit |
| Rear Axle |
6702191 |
 |
Rear Axle EZ3/X3 SX |
| Axle Bearing |
6702184 |
 |
Rear Unit Axle Bearing 15id x35od x11w X3-SX/AX |
| Axle Retaining Nut |
6702204 |
 |
Rear Unit Axle Nut (FOR 14.8mm AXLE) |
| Seat Mesh |
67218 |
 |
Cool Back Seat Mesh |
| Seat Back |
49657 |
 |
Cool Back Steel w/Dual Bottle Mounts |
| Seat Cover |
49639 |
 |
Tri-Stitch Cover |
| Seat Mount |
67231 |
 |
Steel 1" Black |
| Seat Mount Binder |
50036 |
 |
QR M6x50mm Alloy |
| Seat Back Pivot Bolt |
67232 |
 |
10mm, Chrome |
| Upper Strut |
67894 |
|
Steel 150mm Black |
| Upper Strut Bolt |
49672 |
 |
M5x35mm |
| Upper Strut Washer |
49671 |
 |
Curved Nylon Washer |
| Lower Strut |
50044 |
 |
Steel, Pin Type, 700mm Universal |
| Lower Strut Slide Bolt |
67238 |
|
Lower Strut Bolt and Nut |
| Strut Clamp |
67237 |
 |
Pin with QR |
| Weight |
| Weight |
|
|
56 Lbs. |
| Weight Limit |
|
|
300 Lbs. |
| Notes |
| Pricing & Specifications |
|
|
We reserve the right to modify this product’s specifications, colors, and materials without prior notice. Additionally, retail prices may vary from the Manufacturer's Suggested Retail Price (MSRP), which does not include shipping, assembly, or taxes. |
