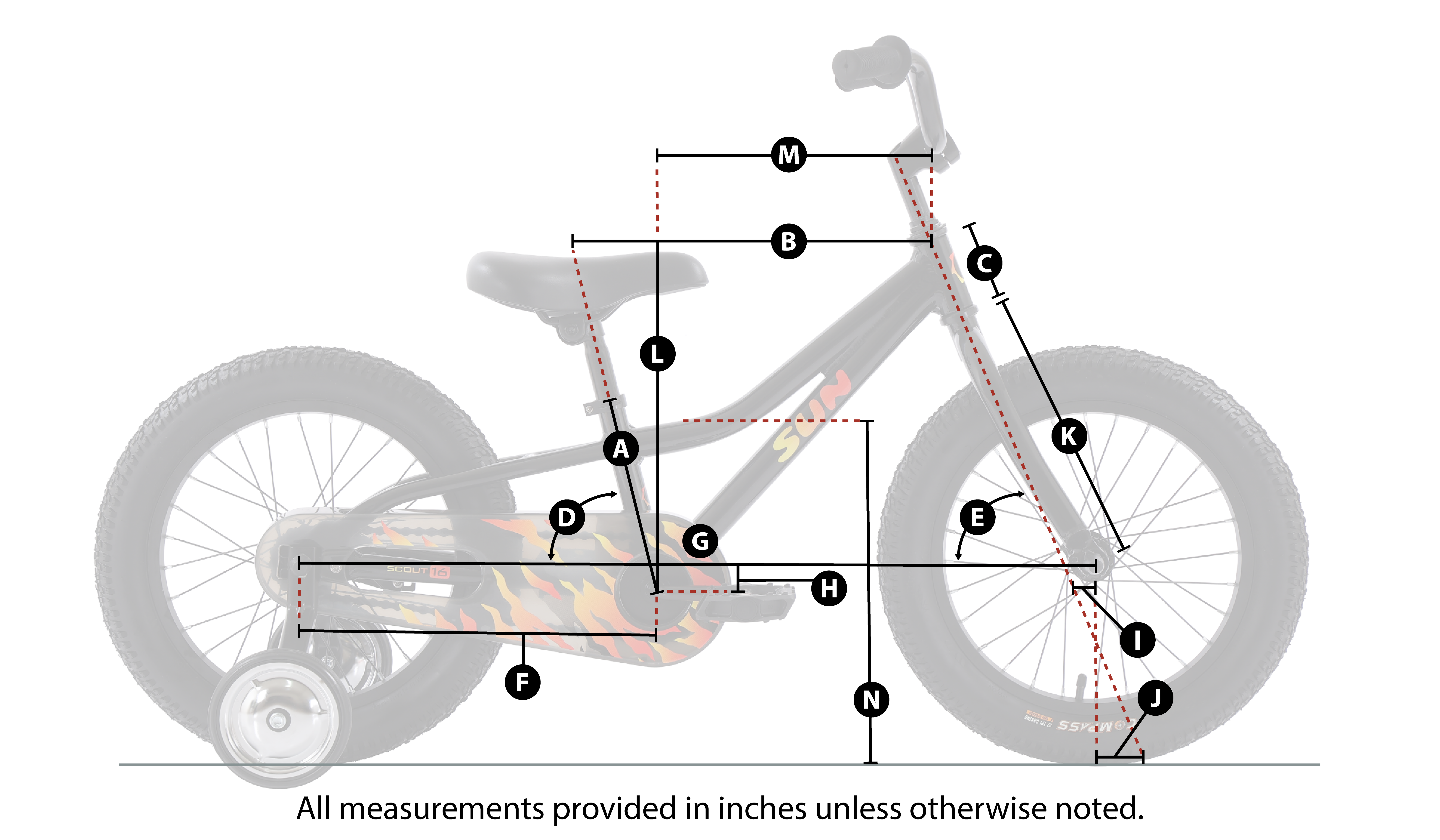

| Frame Size, Effective |
| 14" |
| Frame Size |
| 14" Step Over |
| Seat Tube, Center To Top |
A | 14" |
| Top Tube, Effective |
B | 23.6" |
| Top Tube, Actual |
B4 | 21.6" |
| Head Tube |
C | 4.7" |
| Seat Tube Angle |
D | 74° |
| Head Tube Angle |
E | 70° |
| Chainstay |
F | 16.5" |
| Wheelbase |
G | 39.8" |
| Bottom Bracket Drop |
H | 1" |
| Fork Offset |
I | 2.2" |
| Axle To Crown |
K | 13.4" |
| Step-Thru / Standover |
N | 25" |
| Minimum Step Through |
O | 25" |
| Minimum Saddle To Ground |
| 27.5" |
| Minimum Saddle To Pedal |
| 23.5" |
| Maximum Saddle To Pedal |
| 31.5" |
| Suggested Rider Height |
| 4'2" - 4'11" |
| Maximum Rider Height |
| 4'11" |
| Wheel Size |
| 24" |
| Crank Length |
| 152mm |
| Stem Length |
| 2.4" |
| Handlebar Width |
| 26.5" Wide / 6.3" Rise |
